Gel Leisure Battery 120AH

PHYSICAL SPECIFICATION

Nominal Voltage
Nominal Capacity (10HR)

12V

120Ah

Dimension

Length
Width
Container Height
Total Height

407±2mm (16.02 inches)

174±2mm (6.85 inches)

238±2mm (9.37 inches)

238±2mm (9.37 inches)

Weight

Approx. 35.5Kg ±3% (78.26lbs)

Standard Terminal

Bolt-and-nut terminal

Bolt Type: M6

The Shimastu Gel series Gel Batteries are designed with unique separators and silica gel that immobilizes the electrolyte within the battery. As a result, these batteries are ideal for frequent cyclic deep discharge, as well as standby applications in tough environments. Moreover, they have an extended service life that ensures longevity and reliability.

Features:

1.Special polar plate design,which ensures a designed floating charge life of 15 years at 25℃ (77 ⁰F )

2.Equalized current distribution, the active material is not easy to fall off

3.High gas recombination efficiency

4.Good deep discharge resilience performance

5.No delamination phenomena in the electrolyte

6.Manufactured with high-porosity­

ELECTRICAL SPECIFICATION

Characteristics

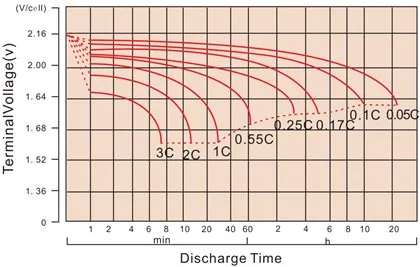

Discharge curves @ 25℃ (77 °F)

Capacity

10 hour rate (12A)

5 hour rate (20.4A)

3 hour rate (30A)

1 hour rate (66A)

120Ah

102Ah

90Ah

66Ah

Capacity affected
by temperature

40℃ （104 ⁰F）

25℃ （77 ⁰F）

0℃ （32 ⁰F）

102%

100%

85%

Max Discharge Current

1200A(5 Sec)

Short Circuit Current

2220A

Internal Resistance

Full charged battery (25℃,77 ⁰F)5.2mΩ

Constant Voltage
Charge

Cycle

Initial Charging Current less than 30A

Voltage 14.1~14.4V at 25℃ (77 ⁰F )

Temperature Coefficient –30mV/℃

Standby

No limit on Initial Charging Current

Voltage 13.5~13.8V at 25℃ (77 ⁰F )

Temperature Coefficient –20mV/℃
