Description
Technical Parameters
Specification:
| Model | Nominal Voltage | Capacity | Dimensions | Ht.Over Terminal | Weight Approx(kg) | Terminals | ||||||||
| L | W | H | ||||||||||||
| (v) | (AH) | 15 min wattage @1.67vpc | in | mm | in | mm | in | mm | in | mm | kg | lb | ||
| NPH5.5-6 | 6 | 5.5 | 22 | 2.76 | 70 | 1.85 | 47 | 3.94 | 100 | 4.13 | 105 | 0.82 | 1.81 | T01(T02) |
| NPH12-6 | 6 | 12 | 54 | 5.94 | 151 | 1.97 | 50 | 3.7 | 94 | 3.9 | 99 | 1.9 | 4.19 | T01(T02) |
| NPH3.2-12 | 12 | 3.2 | 13.5 | 5.31 | 135 | 2.64 | 67 | 2.4 | 61 | 2.6 | 66 | 1.35 | 2.98 | T01(T02) |
| NPH5.5-12 | 12 | 5.5 | 22 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.17 | 106 | 1.55 | 3.42 | T01(T02) |
| NPH8-12 | 12 | 8 | 32 | 5.94 | 151 | 2.56 | 65 | 3.74 | 95 | 3.94 | 100 | 2.3 | 5.07 | T01(T02) |
| NPH9-12 | 12 | 9 | 36 | 5.94 | 151 | 2.56 | 65 | 3.74 | 95 | 3.94 | 100 | 2.62 | 5.77 | T01(T02) |
| NPH12-12 | 12 | 12 | 54 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.94 | 100 | 3.6 | 7.93 | T01(T02) |

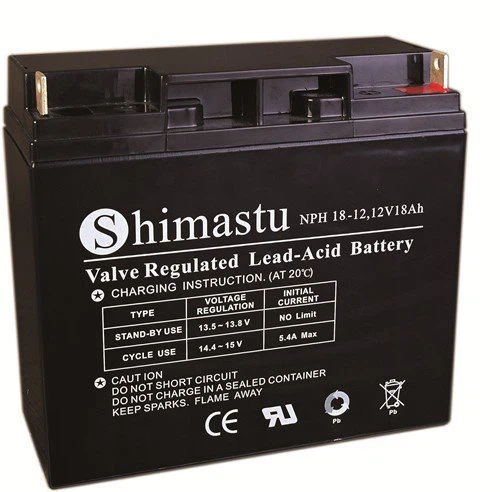

| NPH18-12 | 12 | 18 | 78 | 7.13 | 181 | 2.99 | 76 | 6.54 | 166 | 6.54 | 166 | 6.1 | 13.44 | Q02(B02) |
| NPH24-12 | 12 | 24 | 106 | 6.89 | 175 | 6.5 | 165 | 4.96 | 126 | 4.96 | 126 | 8.7 | 19.17 | Q04(B03) |
| NPH33-12 | 12 | 33 | 150 | 7.72 | 196 | 5.16 | 131 | 6.42 | 163 | 6.61 | 168 | 11.2 | 24.68 | B04 |
| NPH40-12 | 12 | 40 | 170 | 7.8 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 14.2 | 31.3 | B04 |
| NPH55-12 | 12 | 55 | 200 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 18 | 39.67 | B04 |
| NPH65-12 | 12 | 65 | 260 | 13.78 | 350 | 6.57 | 167 | 6.81 | 173 | 6.81 | 173 | 22.5 | 49.59 | B04 |
| NPH75-12 | 12 | 75 | 320 | 10.2 | 259 | 6.65 | 169 | 8.35 | 212 | 8.54 | 217 | 25.2 | 55.54 | B04 |
| NPH90-12 | 12 | 90 | 400 | 12.09 | 307 | 6.65 | 169 | 8.27 | 210 | 8.46 | 215 | 28.2 | 62.15 | B04 |
| NPH100-12 | 12 | 100 | 420 | 13.03 | 331 | 6.77 | 172 | 8.5 | 216 | 8.74 | 222 | 31.5 | 69.43 | B04 |
| NPH134-12 | 12 | 134 | 500 | 13.39 | 340 | 6.81 | 173 | 11.02 | 280 | 11.3 | 287 | 45 | 99.18 | B01 |
| NPH150-12 | 12 | 150 | 560 | 19.09 | 485 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 46.5 | 102.49 | B01 |
